C6423 - Square Trailer Light Kit - Under 80 In.

PRODUCT DESCRIPTION

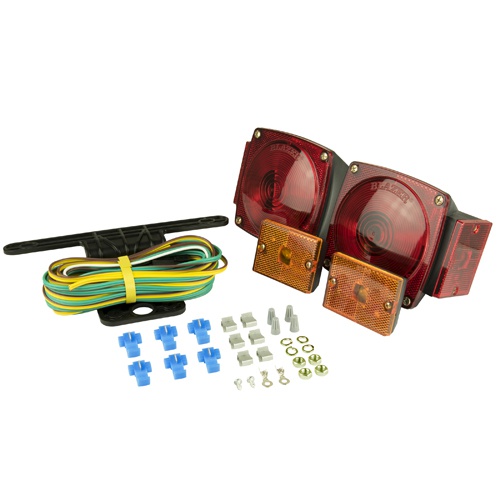

Includes 2 s/t/t lights, 2 marker lights, wiring harness, license plate bracket, mounting hardware and instru
For trailers under 80 inches wide
Stud mount installation
ABS housing and durable acrylic lens protect against corrosion
Works with 12 V systems
3.5 Amperage draw per side
Replacement bulbs #168 and #1157
DOT compliant
Includes 20 ft. wiring harness with 4-flat connector and corrosion resistant license plate bracket
View Installation Video

PRODUCT DETAILS

Item #: C6423
Description: Square Trailer Light Kit - Under 80 In.
Color: Red
Packing Type: Retail Clamshell
Case PK: 12

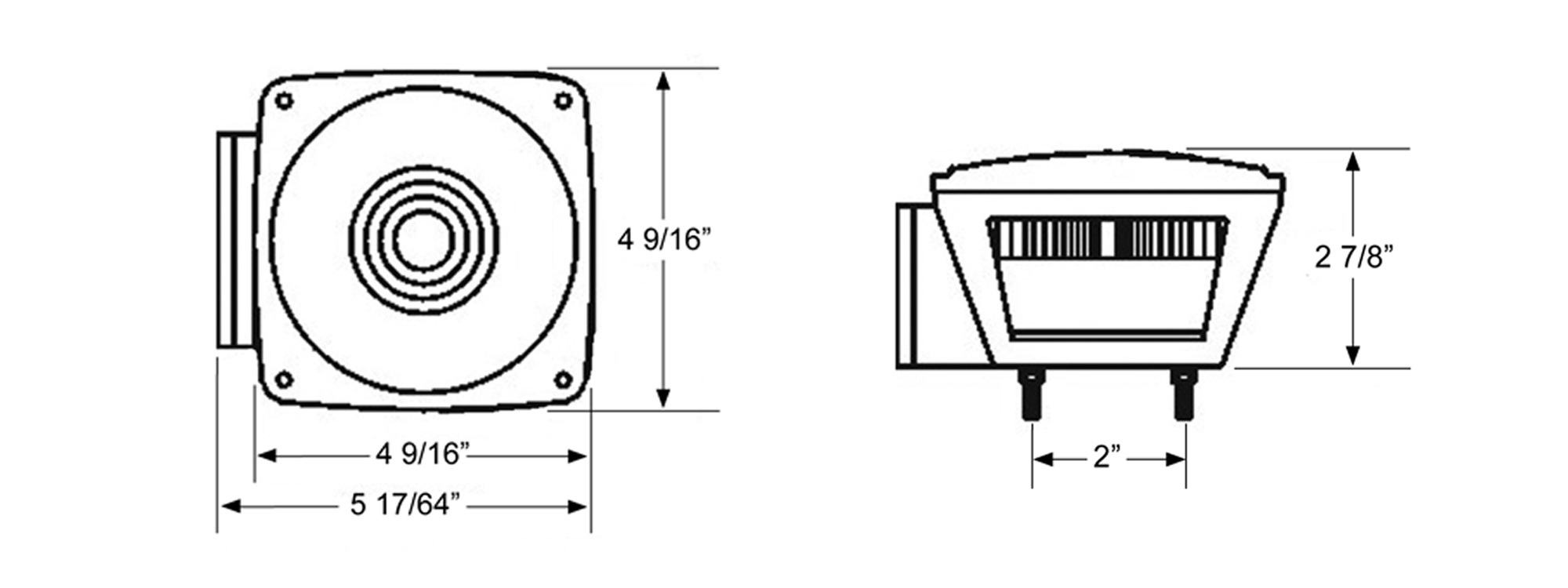

TECHNICAL DRAWINGS
